指令虚拟化

这篇文章解决什么问题

VM（Virtual Machine，虚拟机）类题目是逆向中常见的代码保护方式。出题人会把原本的逻辑转换成一套自定义字节码，再由解释器循环读取并执行。静态分析时，我们看到的往往不是直接的业务逻辑，而是“取 opcode → 分发 → 执行 handler”的解释器结构。

这篇文章先从一个最小 VM 示例入手，再说明如何定义指令集、实现解释器，以及逆向时应该如何还原 VM 的真实逻辑。

认识虚拟机

虚拟机本质上是用软件模拟一套执行环境。我们可以自定义一套指令，例如 0x01 表示把立即数放入虚拟寄存器，0x02 表示输出寄存器中的字符。程序运行时，解释器根据当前 eip 读取 opcode，再跳转到对应的 handler 执行。

在代码保护中，虚拟化会把原本直接执行的机器码转换成自定义字节码。这样一来，逆向者不能只看普通反编译结果，而需要先理解这套 VM 的指令集和解释器。

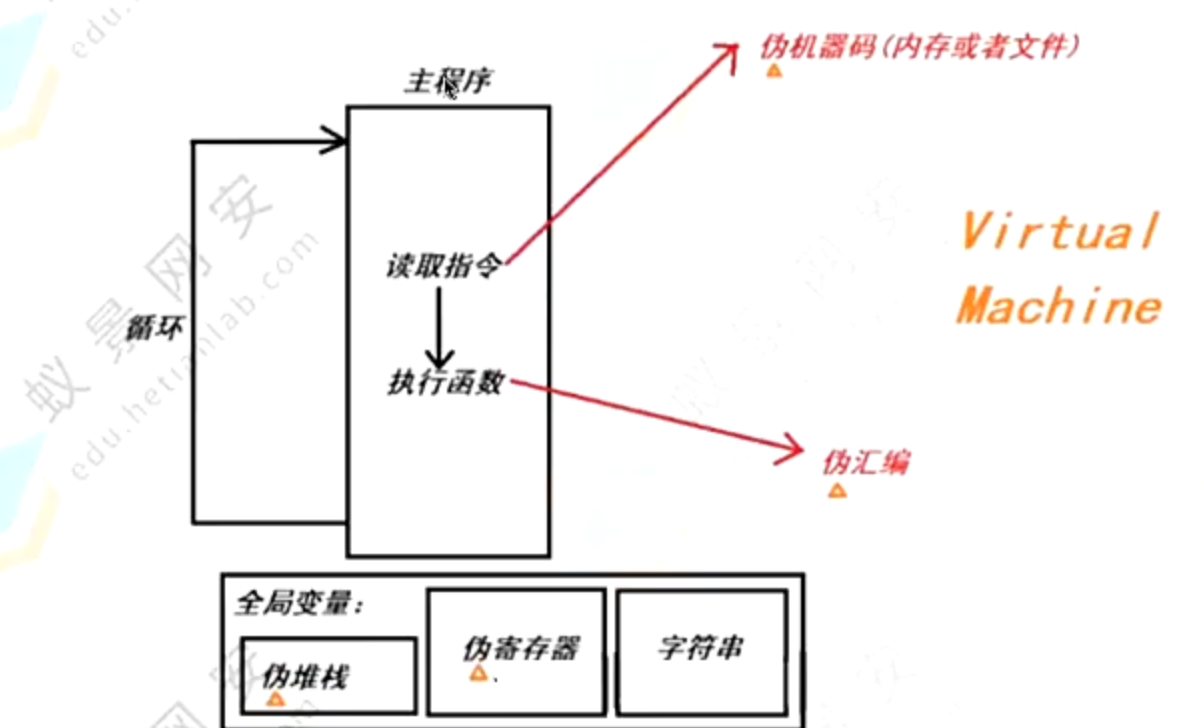

VM 执行流程

VM 的主程序通常是一个循环：不断读取 opcode，执行 opcode 对应的 handler，最后更新虚拟 eip。

最小示例

原始程序：

#include <stdio.h>

int main() {
    printf("Hello!
");
    return 0;
}

可以用如下虚拟机思路重写：

#include <stdio.h>

int main() {
    int eip = 0;
    int eax = 0;

    char code[] = {
        0x01, 0x48, 0x02,
        0x01, 0x65, 0x02,
        0x01, 0x6c, 0x02,
        0x01, 0x6f, 0x02,
        0x01, 0x21, 0x02,
        0x01, 0x0a, 0x02,
        0xff
    };

    while (1) {
        switch (code[eip]) {
        case 0x01:
            eax = code[eip + 1];
            eip += 2;
            break;
        case 0x02:
            printf("%c", eax);
            eip += 1;
            break;
        case 0xff:
            return 0;
        default:
            return -1;
        }
    }
}

这个例子里：

0x01 imm：把立即数 imm 放入虚拟寄存器 eax
0x02：输出 eax 中保存的字符
0xff：结束 VM 执行

所以逆向 VM 的第一步，不是急着找 flag，而是先把每个 opcode 的含义整理出来。

正向实现：

想要对抗指令虚拟化，首先要搞清楚用于保护的虚拟机是如何实现的
要想实现虚拟机，需要完成两个目标：
1.定义一套指令集
2.实现对应的解释器

结构体的定义：

真实赛题的VM通常会实现一个类似如下的结构体，用于保存虚拟机状态：

typedef struct
{
unsigned int r1; //虚拟寄存器r1
unsigned int r2; //虚拟寄存器r2
unsigned int eip; //指向正在解释的opcode地址
unsigned char mem[256]; //虚拟内存
unsigned char code[1024]; //存放自定义机器码
}

书写机器码：

假定希望实现的语句如下：

#define _CRT_SECURE_NO_WARNINGS
#include<stdio.h>
#include<string.h>

typedef struct
{
	unsigned int r1; //虚拟寄存器r1
	unsigned int r2; //虚拟寄存器r2
	unsigned int eip; //指向正在解释的opcode地址
	unsigned char mem[256]; //虚拟内存
	unsigned char code[1024]; //存放自定义机器码
};
int main() {
	char input[60];
	char target[] = "Y0u'd_BetteR_N0t_be_S0me0Ne_Who_always_sh0ws_0ff";
	scanf("%59s", input);
	for (int i = 0; i < strlen(target); i++)
	{
		input[i] ^= 0x21;
	}

	if (!memcmp(input, target, 60))
		printf("yes\n");
	else
		printf("No\n");

}

我们定义：

opcode	指令格式	指令长度	指令含义
0x10	0x10 操作数	2	r1=操作数
0x11	0x11 操作数	2	r2=操作数
0x20	0x20 操作数1 操作数2	3	mem[操作数1]=操作数2
0x30	0x30	1	mem[r1]^=r2
0x40	0x40	1	接收输入到&mem[0]
0x50	0x50 操作数1 操作数2	3	返回memcmp(&mem[0],&mem[操作数1],操作数2)

根据我们定义的指令对其进行拆分和重构，可以得到如下代码：

#include<stdio.h>
int main() {
	unsigned char code[] = {
0x20,0x10,0x59,
0x20,0x10,0x30,
0x20,0x10,0x75,
0x20,0x10,0x27,
0x20,0x10,0x64,
0x20,0x10,0x5f,
0x20,0x10,0x42,
0x20,0x10,0x65,
0x20,0x10,0x74,
0x20,0x10,0x74,
0x20,0x10,0x65,
0x20,0x10,0x52,
0x20,0x10,0x5f,
0x20,0x10,0x4e,
0x20,0x10,0x30,
0x20,0x10,0x74,
0x20,0x10,0x5f,
0x20,0x10,0x62,
0x20,0x10,0x65,
0x20,0x10,0x5f,
0x20,0x10,0x53,
0x20,0x10,0x30,
0x20,0x10,0x6d,
0x20,0x10,0x65,
0x20,0x10,0x30,
0x20,0x10,0x4e,
0x20,0x10,0x65,
0x20,0x10,0x5f,
0x20,0x10,0x57,
0x20,0x10,0x68,
0x20,0x10,0x6f,
0x20,0x10,0x5f,
0x20,0x10,0x61,
0x20,0x10,0x6c,
0x20,0x10,0x77,
0x20,0x10,0x61,
0x20,0x10,0x79,
0x20,0x10,0x73,
0x20,0x10,0x5f,
0x20,0x10,0x73,
0x20,0x10,0x68,
0x20,0x10,0x30,
0x20,0x10,0x77,
0x20,0x10,0x73,
0x20,0x10,0x5f,
0x20,0x10,0x30,
0x20,0x10,0x66,
0x20,0x10,0x66,

0x40,

0x11,0x21,0x10,0x00,0x30,0x11,0x21,0x10,0x01,0x30,0x11,0x21,0x10,0x02,0x30,0x11,0x21,0x10,0x03,0x30,0x11,0x21,0x10,0x04,0x30,0x11,0x21,0x10,0x05,0x30,0x11,0x21,0x10,0x06,0x30,0x11,0x21,0x10,0x07,0x30,0x11,0x21,0x10,0x08,0x30,0x11,0x21,0x10,0x09,0x30,0x11,0x21,0x10,0x0a,0x30,0x11,0x21,0x10,0x0b,0x30,0x11,0x21,0x10,0x0c,0x30,0x11,0x21,0x10,0x0d,0x30,0x11,0x21,0x10,0x0e,0x30,0x11,0x21,0x10,0x0f,0x30,0x11,0x21,0x10,0x10,0x30,0x11,0x21,0x10,0x11,0x30,0x11,0x21,0x10,0x12,0x30,0x11,0x21,0x10,0x13,0x30,0x11,0x21,0x10,0x14,0x30,0x11,0x21,0x10,0x15,0x30,0x11,0x21,0x10,0x16,0x30,0x11,0x21,0x10,0x17,0x30,0x11,0x21,0x10,0x18,0x30,0x11,0x21,0x10,0x19,0x30,0x11,0x21,0x10,0x1a,0x30,0x11,0x21,0x10,0x1b,0x30,0x11,0x21,0x10,0x1c,0x30,0x11,0x21,0x10,0x1d,0x30,0x11,0x21,0x10,0x1e,0x30,0x11,0x21,0x10,0x1f,0x30,0x11,0x21,0x10,0x20,0x30,0x11,0x21,0x10,0x21,0x30,0x11,0x21,0x10,0x22,0x30,0x11,0x21,0x10,0x23,0x30,0x11,0x21,0x10,0x24,0x30,0x11,0x21,0x10,0x25,0x30,0x11,0x21,0x10,0x26,0x30,0x11,0x21,0x10,0x27,0x30,0x11,0x21,0x10,0x28,0x30,0x11,0x21,0x10,0x29,0x30,0x11,0x21,0x10,0x2a,0x30,0x11,0x21,0x10,0x2b,0x30,0x11,0x21,0x10,0x2c,0x30,0x11,0x21,0x10,0x2d,0x30,0x11,0x21,0x10,0x2e,0x30,0x11,0x21,0x10,0x2f,0x30,0x11,0x21,0x10,0x30,0x30,0x11,0x21,0x10,0x31,0x30,0x11,0x21,0x10,0x32,0x30,0x11,0x21,0x10,0x33,0x30,0x11,0x21,0x10,0x34,0x30,0x11,0x21,0x10,0x35,0x30,0x11,0x21,0x10,0x36,0x30,0x11,0x21,0x10,0x37,0x30,0x11,0x21,0x10,0x38,0x30,0x11,0x21,0x10,0x39,0x30,0x11,0x21,0x10,0x3a,0x30,0x50,0x10,59};

初始化虚拟机：

在实际虚拟机运行之前，需要先对VM结构体进行初始化：

VM* vm_new() {
        VM* vm = (VM*)malloc(sizeof(VM));
        memset(vm, 0, sizeof(VM));
        memcpy(vm->code, code, sizeof(code));
        return vm;

解释器编写：

现在就可以来实现每条指令的handle以及dispatcher了：

int vm_run(VM* vm) {
    char opcode;
    char operand_1, operand_2;

    while (1) {
        opcode = vm->code[vm->eip];
        switch (opcode) {
        case 0x10:
            operand_1 = vm->code[vm->eip + 1];
            vm->r1 = operand_1;
            vm->eip += 2;
            break;
        case 0x11:
            operand_1 = vm->code[vm->eip + 1];
            vm->r2 = operand_1;
        case 0x20:
            operand_1 = vm->code[vm->eip + 1];
            operand_2 = vm->code[vm->eip + 2];
            vm->mem[operand_1] = operand_2;
            vm->eip += 3;
            break;
        case 0x30:
            vm->mem[vm->r1] ^= vm->r2;
            vm->eip += 1;
            break;
        case 0x40:
            scanf("%59s", &vm->mem[0]);
        case 0x50:
            operand_1 = vm->code[vm->eip + 1];
            operand_2 = vm->code[vm->eip + 2];
            return memcmp(&vm->mem[0], &vm->mem[operand_1], operand_2);

        }
    }
}

启动：

于是main函数可以这样写 :

int main()
{
VM* vm=vm_new();
if(!vm_run(vm))
	printf("Yes\n");
else
	printf("No\n");
}

解题步骤：

遇到VM类的赛题，我们一般按照如下的步骤来解题:

1.分析VM结构：

结构体大小
有哪些字段

2.分析指令集：

指令长度是否可变
 每种指令的构成
 每种指令的含义
 VM的退出条件

3.编写python版解释器，输出伪汇编代码

4.阅读伪代码，分析程序流程，写出去虚拟化的原始代码

5.书写解题脚本

本例的python解释器如下：

code=b' \x10Y \x100 \x10u \x10\' \x10d \x10_ \x10B \x10e \x10t \x10t \x10e \x10R \x10_ \x10N \x100 \x10t \x10_ \x10b \x10e \x10_ \x10S \x100 \x10m \x10e \x100 \x10N \x10e \x10_ \x10W \x10h \x10o \x10_ \x10a \x10l \x10w \x10a \x10y \x10s \x10_ \x10s \x10h \x100 \x10w \x10s \x10_ \x100 \x10f \x10f@\x11!\x10\x000\x11!\x10\x010\x11!\x10\x020\x11!\x10\x030\x11!\x10\x040\x11!\x10\x050\x11!\x10\x060\x11!\x10\x070\x11!\x10\x080\x11!\x10\t0\x11!\x10\n0\x11!\x10\x0b0\x11!\x10\x0c0\x11!\x10\r0\x11!\x10\x0e0\x11!\x10\x0f0\x11!\x10\x100\x11!\x10\x110\x11!\x10\x120\x11!\x10\x130\x11!\x10\x140\x11!\x10\x150\x11!\x10\x160\x11!\x10\x170\x11!\x10\x180\x11!\x10\x190\x11!\x10\x1a0\x11!\x10\x1b0\x11!\x10\x1c0\x11!\x10\x1d0\x11!\x10\x1e0\x11!\x10\x1f0\x11!\x10 0\x11!\x10!0\x11!\x10"0\x11!\x10#0\x11!\x10$0\x11!\x10%0\x11!\x10&0\x11!\x10\'0\x11!\x10(0\x11!\x10)0\x11!\x10*0\x11!\x10+0\x11!\x10,0\x11!\x10-0\x11!\x10.0\x11!\x10/0\x11!\x1000\x11!\x1010\x11!\x1020\x11!\x1030\x11!\x1040\x11!\x1050\x11!\x1060\x11!\x1070\x11!\x1080\x11!\x1090\x11!\x10:0P\x10;'



r1=0

r2=0

eip=0

mem=[0]*256



while True:

    opcode=code[eip]

    print(hex(eip)[2:].rjust(2,'0'),end='   ')

    if opcode==0x20:

        op1=code[eip+1]

        op2=code[eip+2]

        mem[op1]=op2

        print(f"mov [{hex(op1)}],{hex(op2)}")

        eip+=3

    elif opcode ==0x10:

        r2=code[eip+1]

        print(f"mov r1,{hex(r1)}")

        eip+=2



    elif opcode ==0x11:

        r2=code[eip+1]

        print(f"mov r2,{hex(r2)}")

        eip+=2

    elif opcode ==0x30:

        mem[r1] ^=r2

        print("xor [{hex(r1)}],{hex(r2)}")

        eip+=1

    elif opcode==0x40:

        #flag=input()

        flag="12345".ljust(59,'\0')

        for i in range(59):

            mem[i]=ord(flag[i])

        eip+=1

    elif opcode==0x50:

        op1=code[eip+1]

        op2=code[eip+2]

        print(f"{mem[0:0+op2]} to {mem[op1:op1+op2]}")

        print(mem[0:0+op2] == mem[op1:op1+op2])

        exit()



    else:

        raise RuntimeError(f"unknown opcode: {hex(opcode)}")

# 00   mov [0x10],0x59

# 03   mov [0x10],0x30

# 06   mov [0x10],0x75

# 09   mov [0x10],0x27

# 0c   mov [0x10],0x64

# 0f   mov [0x10],0x5f

# 12   mov [0x10],0x42

# 15   mov [0x10],0x65

# 18   mov [0x10],0x74

# 1b   mov [0x10],0x74

# 1e   mov [0x10],0x65

# 21   mov [0x10],0x52

# 24   mov [0x10],0x5f

# 27   mov [0x10],0x4e

# 2a   mov [0x10],0x30

# 2d   mov [0x10],0x74

# 30   mov [0x10],0x5f

# 33   mov [0x10],0x62

# 36   mov [0x10],0x65

# 39   mov [0x10],0x5f

# 3c   mov [0x10],0x53

# 3f   mov [0x10],0x30

# 42   mov [0x10],0x6d

# 45   mov [0x10],0x65

# 48   mov [0x10],0x30

# 4b   mov [0x10],0x4e

# 4e   mov [0x10],0x65

# 51   mov [0x10],0x5f

# 54   mov [0x10],0x57

# 57   mov [0x10],0x68

# 5a   mov [0x10],0x6f

# 5d   mov [0x10],0x5f

# 60   mov [0x10],0x61

# 63   mov [0x10],0x6c

# 66   mov [0x10],0x77

# 69   mov [0x10],0x61

# 6c   mov [0x10],0x79

# 6f   mov [0x10],0x73

# 72   mov [0x10],0x5f

# 75   mov [0x10],0x73

# 78   mov [0x10],0x68

# 7b   mov [0x10],0x30

# 7e   mov [0x10],0x77

# 81   mov [0x10],0x73

# 84   mov [0x10],0x5f

# 87   mov [0x10],0x30

# 8a   mov [0x10],0x66

# 8d   mov [0x10],0x66

# 90   91   mov r2,0x21

# 93   mov r1,0x0

# 95   xor [{hex(r1)}],{hex(r2)}

# 96   mov r2,0x21

# 98   mov r1,0x0

# 9a   xor [{hex(r1)}],{hex(r2)}

# 9b   mov r2,0x21

# 9d   mov r1,0x0

# 9f   xor [{hex(r1)}],{hex(r2)}

# a0   mov r2,0x21

# a2   mov r1,0x0

# a4   xor [{hex(r1)}],{hex(r2)}

# a5   mov r2,0x21

# a7   mov r1,0x0

# a9   xor [{hex(r1)}],{hex(r2)}

# aa   mov r2,0x21

# ac   mov r1,0x0

# ae   xor [{hex(r1)}],{hex(r2)}

# af   mov r2,0x21

# b1   mov r1,0x0

# b3   xor [{hex(r1)}],{hex(r2)}

# b4   mov r2,0x21

# b6   mov r1,0x0

# b8   xor [{hex(r1)}],{hex(r2)}

# b9   mov r2,0x21

# bb   mov r1,0x0

# bd   xor [{hex(r1)}],{hex(r2)}

# be   mov r2,0x21

# c0   mov r1,0x0

# c2   xor [{hex(r1)}],{hex(r2)}

# c3   mov r2,0x21

# c5   mov r1,0x0

# c7   xor [{hex(r1)}],{hex(r2)}

# c8   mov r2,0x21

# ca   mov r1,0x0

# cc   xor [{hex(r1)}],{hex(r2)}

# cd   mov r2,0x21

# cf   mov r1,0x0

# d1   xor [{hex(r1)}],{hex(r2)}

# d2   mov r2,0x21

# d4   mov r1,0x0

# d6   xor [{hex(r1)}],{hex(r2)}

# d7   mov r2,0x21

# d9   mov r1,0x0

# db   xor [{hex(r1)}],{hex(r2)}

# dc   mov r2,0x21

# de   mov r1,0x0

# e0   xor [{hex(r1)}],{hex(r2)}

# e1   mov r2,0x21

# e3   mov r1,0x0

# e5   xor [{hex(r1)}],{hex(r2)}

# e6   mov r2,0x21

# e8   mov r1,0x0

# ea   xor [{hex(r1)}],{hex(r2)}

# eb   mov r2,0x21

# ed   mov r1,0x0

# ef   xor [{hex(r1)}],{hex(r2)}

# f0   mov r2,0x21

# f2   mov r1,0x0

# f4   xor [{hex(r1)}],{hex(r2)}

# f5   mov r2,0x21

# f7   mov r1,0x0

# f9   xor [{hex(r1)}],{hex(r2)}

# fa   mov r2,0x21

# fc   mov r1,0x0

# fe   xor [{hex(r1)}],{hex(r2)}

# ff   mov r2,0x21

# 101   mov r1,0x0

# 103   xor [{hex(r1)}],{hex(r2)}

# 104   mov r2,0x21

# 106   mov r1,0x0

# 108   xor [{hex(r1)}],{hex(r2)}

# 109   mov r2,0x21

# 10b   mov r1,0x0

# 10d   xor [{hex(r1)}],{hex(r2)}

# 10e   mov r2,0x21

# 110   mov r1,0x0

# 112   xor [{hex(r1)}],{hex(r2)}

# 113   mov r2,0x21

# 115   mov r1,0x0

# 117   xor [{hex(r1)}],{hex(r2)}

# 118   mov r2,0x21

# 11a   mov r1,0x0

# 11c   xor [{hex(r1)}],{hex(r2)}

# 11d   mov r2,0x21

# 11f   mov r1,0x0

# 121   xor [{hex(r1)}],{hex(r2)}

# 122   mov r2,0x21

# 124   mov r1,0x0

# 126   xor [{hex(r1)}],{hex(r2)}

# 127   mov r2,0x21

# 129   mov r1,0x0

# 12b   xor [{hex(r1)}],{hex(r2)}

# 12c   mov r2,0x21

# 12e   mov r1,0x0

# 130   xor [{hex(r1)}],{hex(r2)}

# 131   mov r2,0x21

# 133   mov r1,0x0

# 135   xor [{hex(r1)}],{hex(r2)}

# 136   mov r2,0x21

# 138   mov r1,0x0

# 13a   xor [{hex(r1)}],{hex(r2)}

# 13b   mov r2,0x21

# 13d   mov r1,0x0

# 13f   xor [{hex(r1)}],{hex(r2)}

# 140   mov r2,0x21

# 142   mov r1,0x0

# 144   xor [{hex(r1)}],{hex(r2)}

# 145   mov r2,0x21

# 147   mov r1,0x0

# 149   xor [{hex(r1)}],{hex(r2)}

# 14a   mov r2,0x21

# 14c   mov r1,0x0

# 14e   xor [{hex(r1)}],{hex(r2)}

# 14f   mov r2,0x21

# 151   mov r1,0x0

# 153   xor [{hex(r1)}],{hex(r2)}

# 154   mov r2,0x21

# 156   mov r1,0x0

# 158   xor [{hex(r1)}],{hex(r2)}

# 159   mov r2,0x21

# 15b   mov r1,0x0

# 15d   xor [{hex(r1)}],{hex(r2)}

# 15e   mov r2,0x21

# 160   mov r1,0x0

# 162   xor [{hex(r1)}],{hex(r2)}

# 163   mov r2,0x21

# 165   mov r1,0x0

# 167   xor [{hex(r1)}],{hex(r2)}

# 168   mov r2,0x21

# 16a   mov r1,0x0

# 16c   xor [{hex(r1)}],{hex(r2)}

# 16d   mov r2,0x21

# 16f   mov r1,0x0

# 171   xor [{hex(r1)}],{hex(r2)}

# 172   mov r2,0x21

# 174   mov r1,0x0

# 176   xor [{hex(r1)}],{hex(r2)}

# 177   mov r2,0x21

# 179   mov r1,0x0

# 17b   xor [{hex(r1)}],{hex(r2)}

# 17c   mov r2,0x21

# 17e   mov r1,0x0

# 180   xor [{hex(r1)}],{hex(r2)}

# 181   mov r2,0x21

# 183   mov r1,0x0

# 185   xor [{hex(r1)}],{hex(r2)}

# 186   mov r2,0x21

# 188   mov r1,0x0

# 18a   xor [{hex(r1)}],{hex(r2)}

# 18b   mov r2,0x21

# 18d   mov r1,0x0

# 18f   xor [{hex(r1)}],{hex(r2)}

# 190   mov r2,0x21

# 192   mov r1,0x0

# 194   xor [{hex(r1)}],{hex(r2)}

# 195   mov r2,0x21

# 197   mov r1,0x0

# 199   xor [{hex(r1)}],{hex(r2)}

# 19a   mov r2,0x21

# 19c   mov r1,0x0

# 19e   xor [{hex(r1)}],{hex(r2)}

# 19f   mov r2,0x21

# 1a1   mov r1,0x0

# 1a3   xor [{hex(r1)}],{hex(r2)}

# 1a4   mov r2,0x21

# 1a6   mov r1,0x0

# 1a8   xor [{hex(r1)}],{hex(r2)}

# 1a9   mov r2,0x21

# 1ab   mov r1,0x0

# 1ad   xor [{hex(r1)}],{hex(r2)}

# 1ae   mov r2,0x21

# 1b0   mov r1,0x0

# 1b2   xor [{hex(r1)}],{hex(r2)}

# 1b3   mov r2,0x21

# 1b5   mov r1,0x0

# 1b7   xor [{hex(r1)}],{hex(r2)}

# 1b8   [10, 50, 51, 52, 53, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0] to [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]

#其实逆向逻辑也就是如下：

raw=[0x59,0x30,0x75,0x27,0x64,0x5f,0x42,0x65,0x74,0x74,0x65,0x52,0x5f,0x4e,0x30,0x74,0x5f,0x62,0x65,0x5f,0x53,0x30,0x6d,0x65,0x30,0x4e,0x65,0x5f,0x57,0x68,0x6f,0x5f,0x61,0x6c,0x77,0x61,0x79,0x73,0x5f,0x73,0x68,0x30,0x77,0x73,0x5f,0x30,0x66,0x66]

flag=''

for i in range(len(raw)):

    flag+=chr(raw[i]^0x21)

print(flag)
